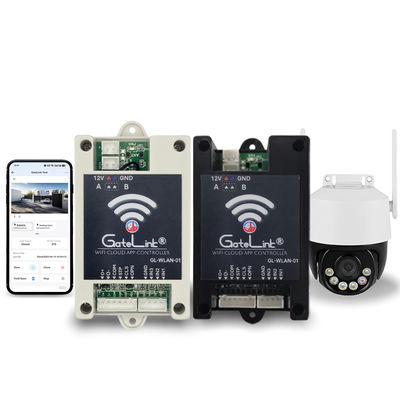

Cloud-Based Smart Barrier Controller WiFi/4G Access System for Parking Lots Gated Communities
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| リレー出力 | 4ウェイ | リレー入力 | 3つの方法 |
|---|---|---|---|
| 通信する | Wifi/4G | 動作温度範囲 | -30〜80℃ |
| インテリジェントな安全警告 | ダブル - 異常イベントの通知（アプリポップ - アラーム +詳細な電子メールレポート）;物理保護リンケージ（強制ドアの開口部がアラームをトリガーし、カメラが自動的に証拠を取る） | オペレーションカウントと健康診断 | フル - デバイスの開閉時間および実行期間のサイクル統計。しきい値トリガーとメンテナンスレポートの生成を備えたメンテナンス警告システム |
| ハイライト | WiFi smart barrier controller,4G access control system,parking lot gate opener |
||
製品の説明
Product Description:
The JUTAI Smart Gate Controller is a cutting-edge WiFi/4G enabled access control solution that brings smart automation to gates, barriers, and doors. Designed for both residential and commercial applications, this JUTAI-branded controller allows users to remotely operate gates, sliding doors, and barriers via a user-friendly mobile app.
Key Features:
- •
WiFi & 4G Dual Connectivity – Ensures uninterrupted remote control even when WiFi is unavailable
- •
Multi-Device Control – Supports up to 4 relay outputs for gates, lights, and smart home devices
- •
Real-Time Monitoring – HD camera integration for live video feeds and two-way audio communication
- •
Smart Alerts & Logs – Get instant notifications for unauthorized access or system events
- •
Industrial-Grade Durability – Operates in -10°C to 60°C environments, perfect for outdoor installations
- •
RS485 Communication – Adjust settings for industrial automation equipment
Applications:
Residential Use:
- •
Smart sliding doors (garage, patio, main gate)
- •
Home automation (lights, curtains, AC units)
- •
Package delivery access (temporary unlock via app)
Commercial & Industrial Use:
- •
Barrier gates (parking lots, toll booths)
- •
Turnstiles & high-speed doors (office buildings, warehouses)
- •
Fleet logistics (loading bay door control)
Technical Specifications:
- •
Model: GL-WLAN-01
- •
Power Supply: DC 12V 1A (5V customizable)
- •
Connectivity: WiFi + BLE + 4G (optional)
- •
Relay Outputs: 4 channels (3 shared COM, 1 independent)
- •
Operating Temp: -10°C to 60°C
- •
Dimensions: 96.5 x 50 x 31.4mm
Why Choose JUTAI?
- •
All-in-One Control – Manage gates, barriers, and smart devices from a single app
- •
Secure & Encrypted – End-to-end encryption protects against hacking
- •
Easy Installation – No professional setup required
Technical Specifications:
|
Parameter |
Details |
|---|---|
| Model | GL-WLAN-01 |
| Power Supply | DC 12V 1A (5V customizable) |
| Load Capacity | DC 30V/1A, AC 125V/1A |
| Connectivity | WiFi + BLE + 4G (optional) |
| Protocols | MQTT, RS485, OTA (Over-The-Air updates) |
| Relay Outputs | 4 channels (3 shared COM, 1 independent) |
| Digital Inputs | 3 non-isolated interfaces |
| Dimensions | 96.5 x 50 x 31.4mm |
| Camera Support | HD streaming, night vision, motion detection |
