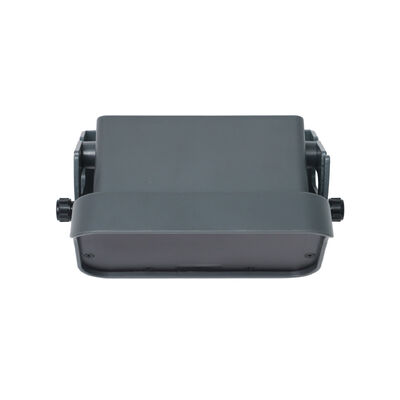

RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control

RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control​

Product Summary​

The RVP42-7M​ is a high-performance 24GHz Doppler radar sensor designed specifically for smart parking barrier gate systems. Using advanced planar radar technology and digital signal processing, it delivers precise vehicle detection, direction recognition, and reliable access control even in challenging outdoor environments. With ultra-low false alarm rates, rapid response time, and robust construction, the RVP42-7M ensures smooth traffic flow, enhanced security, and reduced maintenance costs for modern parking facilities.

Key Benefits for Parking Applications​

• Accurate Vehicle Detection​ – Identifies cars, vans, and light trucks approaching or leaving the gate with 95% accuracy.

• Direction Awareness​ – Distinguishes between inbound and outbound vehicles to trigger barrier arms intelligently.

• Reduced False Triggers​ – Filters out pedestrians, bicycles, and lateral movements to avoid unnecessary gate activation.

• Fast & Consistent Performance​ – Response time under 50ms guarantees seamless entry/exit without delays.

• Harsh Environment Ready​ – Operates reliably from -30°C to +60°C with IP65 protection against rain, dust, and vibration.

• Easy Integration​ – Configurable relay output (NO/NC), adjustable sensitivity, and flexible mounting heights simplify installation with existing barrier controllers.

Technical Specifications Table​

Functional Highlights for Barrier Gate Systems​

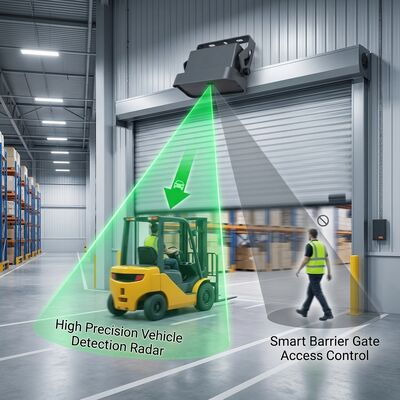

• Vehicle-Only Activation​ – Prevents pedestrian or stray object triggering, ensuring gates open only for authorized vehicles.

• Bidirectional Traffic Handling​ – Recognizes vehicle direction for optimized automation and queue management.

• Flexible Timing Settings​ – Adjust relay hold time to match barrier arm speed and safety requirements.

• Electromagnetic Noise Immunity​ – Ideal for parking lots with LED lighting, EV chargers, or nearby motors.

• Quick Deployment​ – Includes mounting bracket, 7m cable, and intuitive LED indicators for straightforward installation and diagnostics.

Why Choose RVP42-7M Over Conventional Detectors​

Typical Parking Lot Applications​

• Automated entry/exit barrier gates

• Vehicle counting & access verification

• Toll booth lanes & VIP lane management

• Gated residential communities & commercial complexes

• Airport/train station parking zones

Installation Tips​

• Mount sensor at 2–7 meters height facing the vehicle approach path.

• Ensure no large metal objects obstruct the radar beam.

• Enable lateral motion filter to ignore crossing pedestrians or bicycles.

• Use anti-interference mode if surrounded by LED signs or EV charging stations.

• Align sensitivity level according to traffic density and vehicle mix.

Package Contents & Support​

• RVP42-7M sensor unit

• Mounting bracket and hardware

• 7-meter pre-wired cable

• User manual

• Optional: OEM/ODM branding and custom firmware

• Warranty: 2 years standard (3 years extendable)

• Support: 24-hour hotline, 48-hour email response, remote configuration assistance
